Plating: Gold plated (According to customer requirements)
Rated voltage (each contact): 5V
Rated current (each contact): 2A
Mechanical life: 10000 times
Operating temperature range: - 30 ~ 85 °

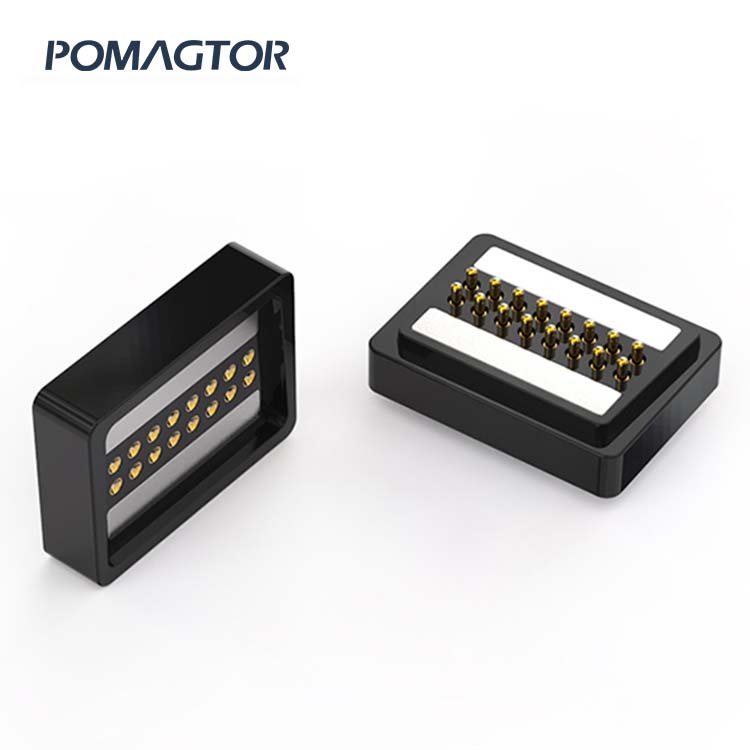

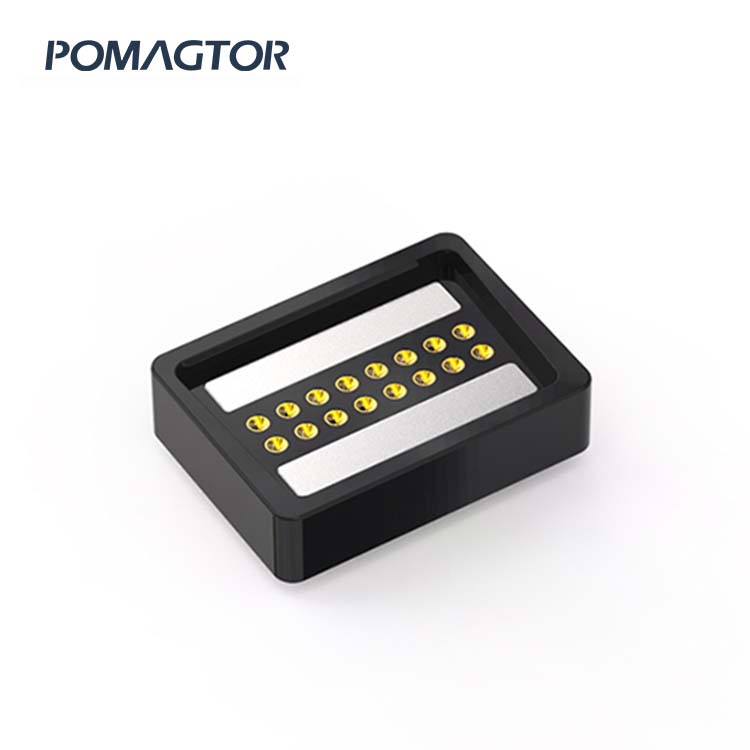

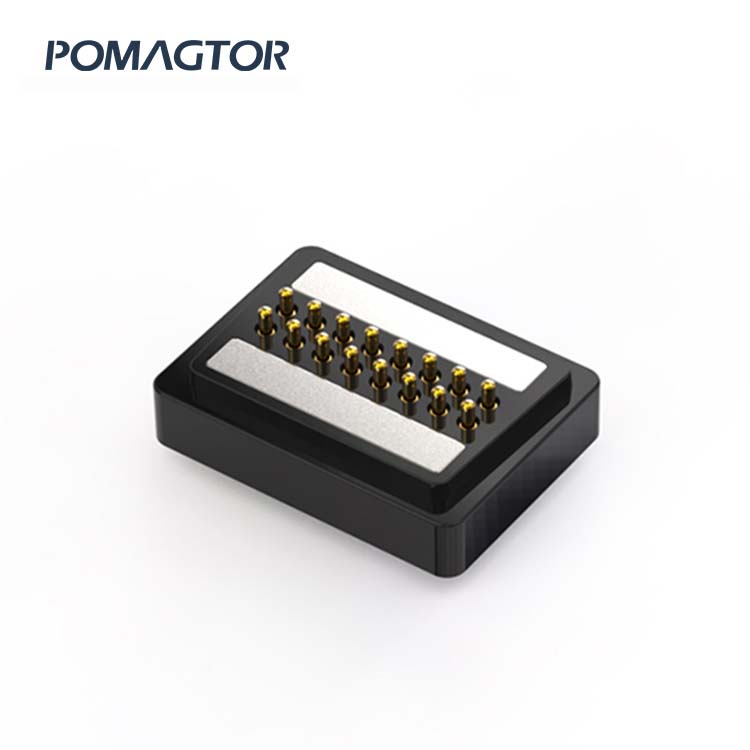

The 16 pin pogo connector is a reliable and precise connector widely used in medical devices. This pogo pin type features excellent positioning performance, ensuring it remains securely in place after being mounted on a PCB.
Our 16 pin pogo connectors for medical equipment are designed to meet the high standards of medical applications, offering durability, precise positioning, and reliable signal transmission.
| NOTES | |
| 1.0 Plating | 1)Contact plating: Brass Au3u" over 50-120u"Ni 2)Contact solder area plating: Brass Au3u" over 50-120u"Ni 3)Housing: PA46 Black 4)Magnet: N52 |
| 2.0 Rated voltage(Per Contact): | 5Volts |
| 3.0 Rated Current(Per Contact): | 2A maximum |
| 4.0 Insulation Resistance: | 100mΩ min |
| 5.0 Dielectric Withstand Voltage: | 100V at 60Hz |
| 6.0 Mechanical life: | 10000 Cycles Min |
| 7.0 Working Temperaure Range: | -30~85° |
Pomagtor's Pogo Pin, magnetic attraction connector, and magnetic attraction data line products can be applied to unlimited applications. For projects requiring durable pogo pins for beauty instrument, Pomagtor also offers custom SMT spring-loaded pogo pins or SMT pogo pin ODM, and tailored SMT pogo pin solutions for stable electrical connectivity and precision.
The following are just some examples of how our products can be used-please feel free to contact Pomagtor for more details.
● Consumer electronics / smart wearable devices
● Digital cameras / medical devices / electrical appliances
● New energy vehicle / telephone application
● Smart water cup / car charging / air purifier
● Power bank / digital products / small household appliances
● Charging products / signal transmission products etc
