Plating: Gold plated (According to customer requirements)
Rated voltage (each contact): 12V
Rated current (each contact): 1.5A
Mechanical life: 20000 times
Operating temperature range: - 30 ~ 85 °

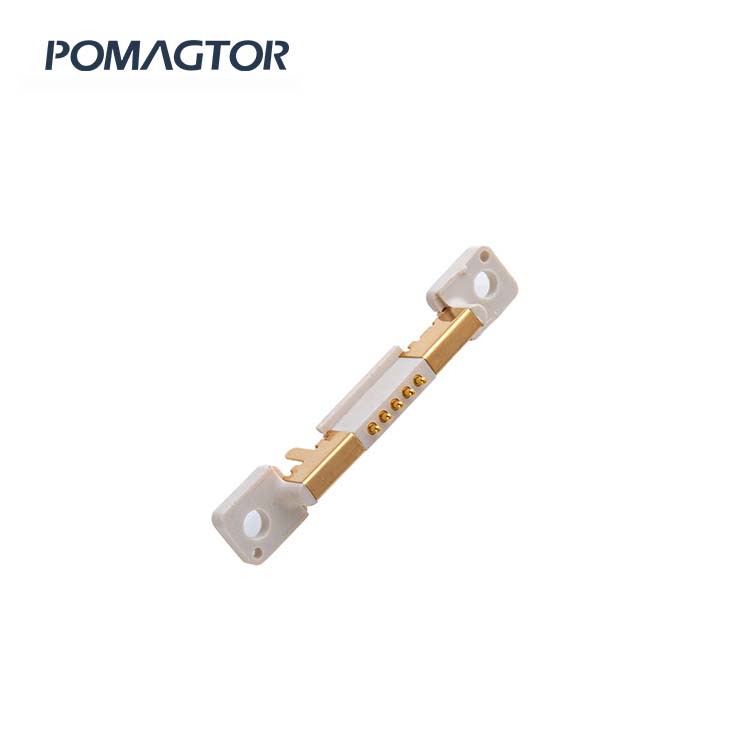

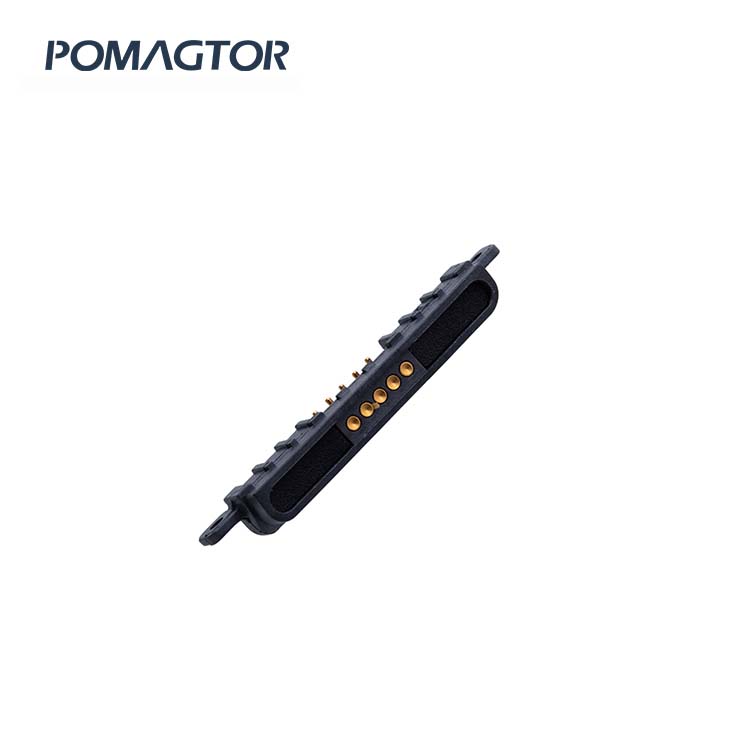

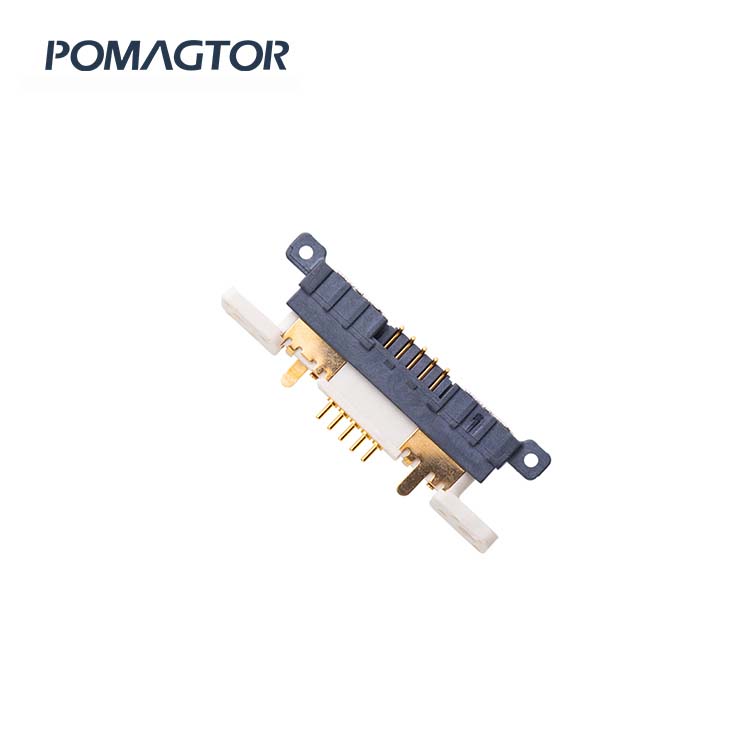

Its magnetic pogo-pin structure enables automatic attachment when in close proximity, making the magnetic connector 5 pin convenient, reliable, and user-friendly. With stable conductivity and efficient alignment, it is ideal for a wide range of 5 pin wearable connector applications.
High-current performance (up to 10A) for fast charging and reduced downtime
Tear-away safety function prevents damage from accidental cable pulling
Vibration-proof structure, ideal for wearable devices in motion
Supports power + data transmission with stable, high-speed signal integrity
| NOTES | |
| 1.0 Plating | 1)Contact plating: Brass Au10u"over 50-80u" Ni 2)Contact solder area plating: Brass Au10u"over 50-80u" Ni 3)Spring: SUS 304 Au" over 5-25u" Ni 4)Housing: HTN Operating Temperature 265" 5)Cover: SUS 201 |
| 2.0 Rated voltage(Per Contact): | 12Volts |
| 3.0 Rated Current(Per Contact): | 1.5A maximum |
| 4.0 Insulation Resistance: | 100mΩ min |
| 5.0 Dielectric Withstand Voltage: | 100V at 60Hz |
| 6.0 Mechanical life: | 20000 Cycles Min |
| 7.0 Working Temperaure Range: | -30~85° |
Pomagtor's Pogo Pin, magnetic attraction connector, and magnetic attraction data line products can be applied to unlimited applications. For projects requiring durable pogo pins for beauty instrument, Pomagtor also offers custom SMT spring-loaded pogo pins or SMT pogo pin ODM, and tailored SMT pogo pin solutions for stable electrical connectivity and precision.
The following are just some examples of how our products can be used-please feel free to contact Pomagtor for more details.
● Consumer electronics / smart wearable devices
● Digital cameras / medical devices / electrical appliances
● New energy vehicle / telephone application
● Smart water cup / car charging / air purifier
● Power bank / digital products / small household appliances
● Charging products / signal transmission products etc
