Plating: Gold plated (According to customer requirements)
Rated voltage (each contact): 5V
Rated current (each contact): 2A
Mechanical life: 100000~1000000 times
Operating temperature range: - 30 ~ 85 °

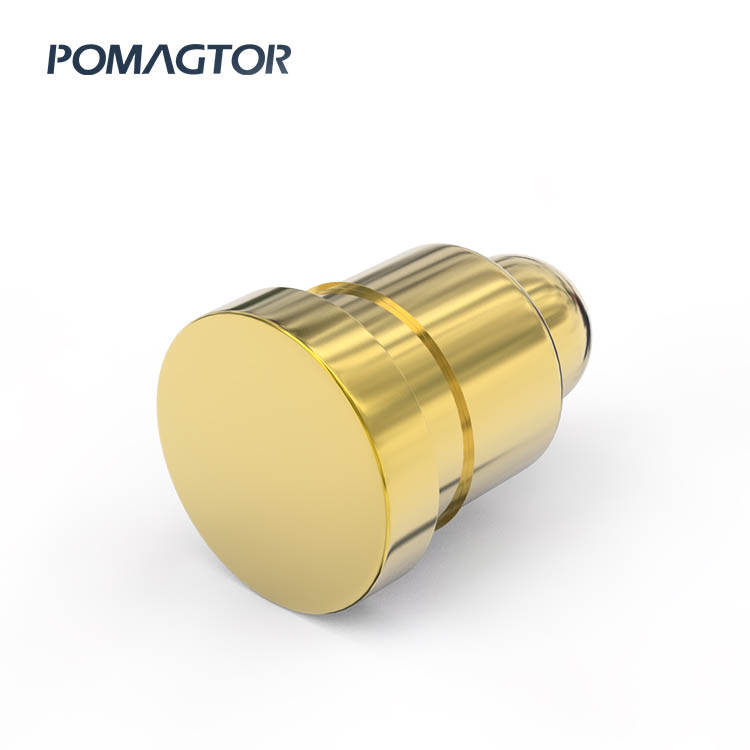

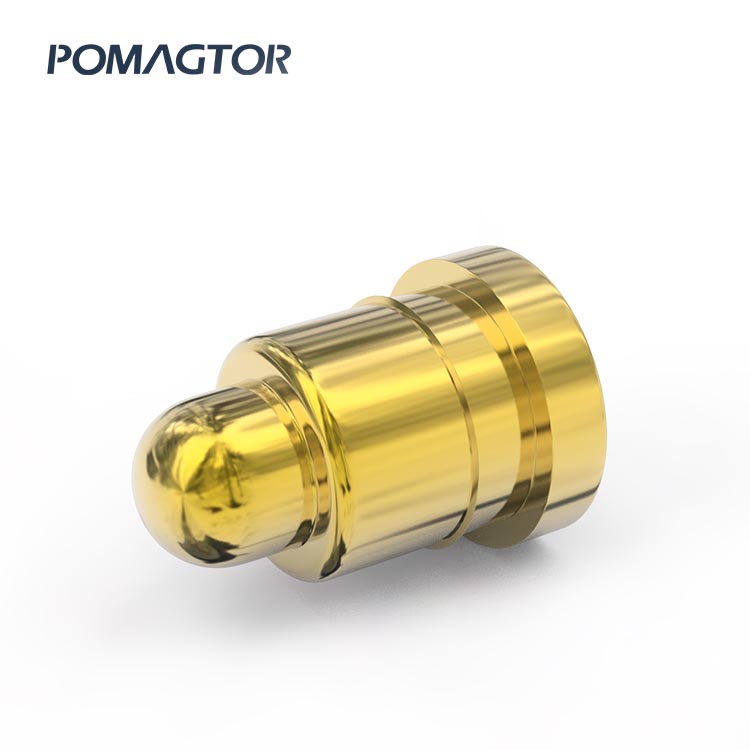

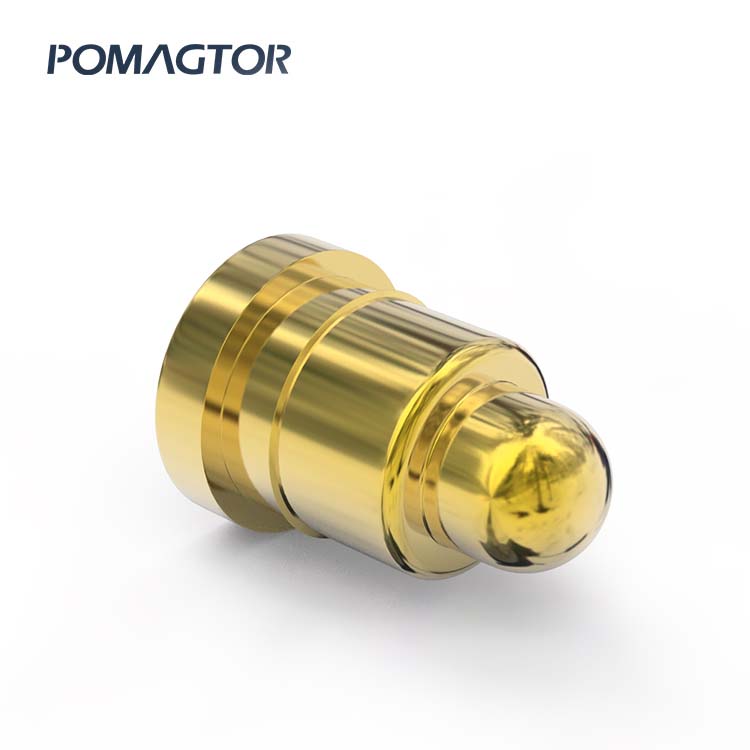

Pogo Pin is a spring-type probe formed by three basic components: Plunger, Tube, and Spring, assembled through high-precision equipment using rivet pressure. Also known as Spring needle, Spring thimble, Spring probe, Spring Loaded, or PogoPin connector, these components are widely used in SMT spring-loaded pogo pins for beauty instruments.
The bottom of the Pogo Pin’s Plunger usually features a bevel structure, which ensures stable contact with the inner wall of the Tube during operation. This design is critical for pogo pins in beauty instruments, where consistent electrical connectivity is essential.
| NOTES | |
| 1.0 PLATING: | 1) Contact Plating: Brass Au5u" over 50-120u" Ni 2) Contact Solder area Plating: Brass Au5u" over 50-120u" Ni 3) Spring: SUS 304 |
| 2.0 Rated Voltage(Per Contact): | 5 Volts |
| 3.0 Rated Current(Per Contact): | 2A Maximum |
| 4.0 Contact Resistance: | 30MΩ Maximum |
| 5.0 Recommended Working Strok&Force: | 1) Stroke 0.50mm(Per Contact): 60±15gf |
| 6.0 Mechanical life: | 1) 0.5mm (Mechanical life): 100000~1000000 Cycles Min |
| 7.0 Working Temperature Range: | -30~85°C |
Pomagtor's Pogo Pin, magnetic attraction connector, and magnetic attraction data line products can be applied to unlimited applications. For projects requiring durable pogo pins for beauty instrument, Pomagtor also offers custom SMT spring-loaded pogo pins or SMT pogo pin ODM, and tailored SMT pogo pin solutions for stable electrical connectivity and precision.
The following are just some examples of how our products can be used-please feel free to contact Pomagtor for more details.
● Consumer electronics / smart wearable devices
● Digital cameras / medical devices / electrical appliances
● New energy vehicle / telephone application
● Smart water cup / car charging / air purifier
● Power bank / digital products / small household appliances
● Charging products / signal transmission products etc
