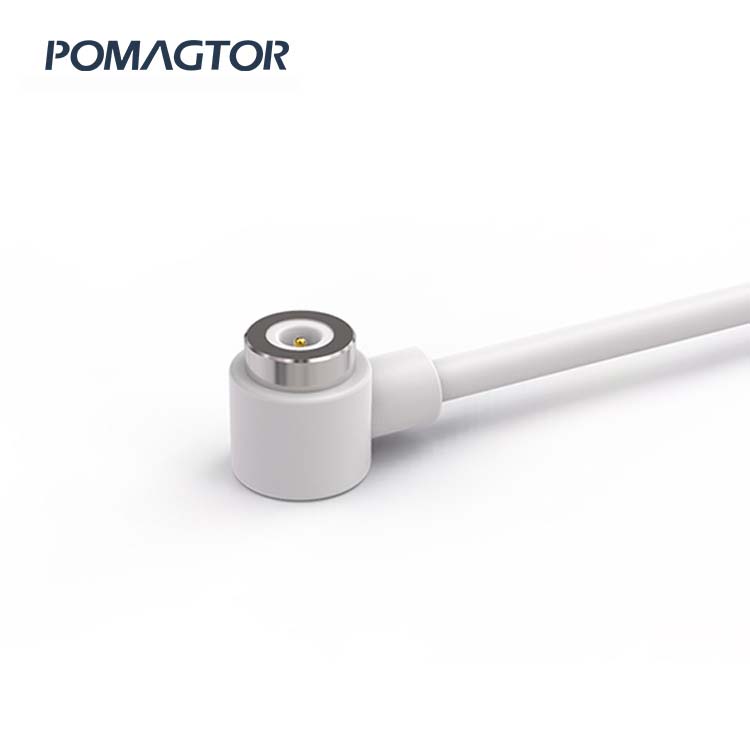

Magnetic data line 6mm 2Pin Waterproof magnetic suction cable -30~85°C 1.5A 5V

Plating: Gold plated (According to customer requirements)

Rated voltage (each contact): 5V

Rated current (each contact): 1.5A

Mechanical life: 10000 times

Operating temperature range: - 30 ~ 85 °

Product Introduction

Product Parameters

Documents

Product Introduction


It can not only achieve good high frequency signal transmission, can provide more than 10A current charging, and at the same time can provide high rate data transmission, can achieve fast charging and other functions. The magnetic attraction function can achieve beautiful appearance design for the product, and solve the problems of pulling the charging cable from the host (laptop, mobile phone and other high-end devices) to dropping and damage.

Product Parameters


NOTES
1.0 Plating:1)Contact plating: Brass Au3u"over 50-80u" Ni

2)Spring: SUS

3)Housing: TPE while

4)Magner: N52

5)Cable: TPE OD3.5

6)PCB: FR4

2.0 Rated voltage(Per Contact):5Volts
3.0 Rated Current(Per Contact):1.5A maximum
4.0 Mechanical life:10000 Cycles Min
5.0 Working Temperaure Range:-30~85°


Application

Pomagtor's pogopin, magnetic attraction connector and magnetic attraction data line products can be applied to unlimited applications. The following are just some examples of how to use the product. Please feel free to contact pomagtor for more details

● Consumer electronics / smart wearable devices

● Digital cameras / medical devices / electrical appliances

● New energy vehicle / telephone application

● Smart water cup / car charging / air purifier

● Power bank / digital products / small household appliances

● Charging products / signal transmission products etc
