HOME  >  Magnetic Data Line  >  2PIN>Magnetic data line 2Pin Watch Juicer -40~85°C 0.5A 5V Mechanical life: 10000 times

Magnetic data line 2Pin Watch Juicer -40~85°C 0.5A 5V Mechanical life: 10000 times

Plating: Gold plated (According to customer requirements)

Rated voltage (each contact): 5V

Rated current (each contact): 0.5A

Mechanical life: 10000 times

Operating temperature range: - 40 ~ 85 °

Categories: Magnetic Data Cable 2PIN

Product Introduction

Product Parameters

Documents

Product Introduction


Product Introduction

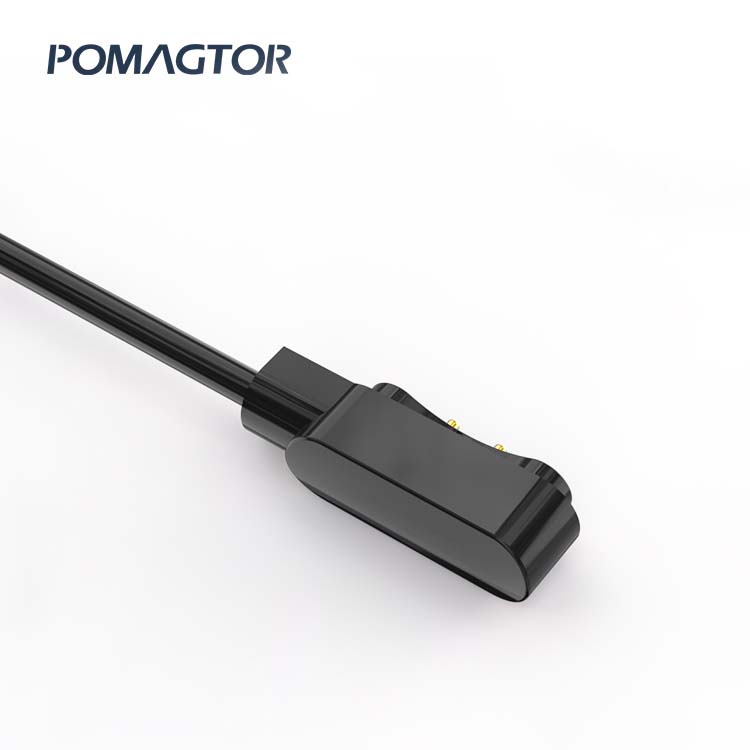

RD90.LZH0220730-001 is 2 Pin magnetic charger cable for data sync and charging produced by Pomagtor. The contact pins are gold-plated, and the magnets are nickel-plated. The male connects with a USB cable, designing a magnets pole for anti-reverse. Pomagtor magnetic charging cable provides a reliable electrical connection in the most rigorous environments, not easy to corrode.


Pomagtor Pogo Pin charging cable is easy to use. It can not only achieve good high-frequency signal transmission, can provide more than 10A current charging, and at the same time can provide high rate data transmission, can achieve fast charging and other functions. The magnetic attraction function can achieve a beautiful appearance design for the product and solve the problems of pulling the charging cable from the host (laptop, mobile phone, and other high-end devices) to drop and damage.


Customized Service

Pomagtor is a professional Pogo Pin magnetic charging cable supplier. Custom magnetic pins 2 Pin magnetic USB cable connector from us. We have over years of experience in R&D magnetic connectors. Contact Pomagtor to order 2 Pin magnetic charger or more.

Product Parameters


NOTES
1.0 Rated voltage(Per Contact):5Volts
2.0 Rated Current(Per Contact):0.5A
3.0 Insulation Resistance:300V/DC 10MΩ min
4.0 Dielectric Withstand Voltage:100V at 60Hz
5.0 Mechanical life:10000 Cycles Min
6.0 Working Temperaure Range:-40~85°


Application

Pomagtor's pogopin, magnetic attraction connector and magnetic attraction data line products can be applied to unlimited applications. The following are just some examples of how to use the product. Please feel free to contact pomagtor for more details

● Consumer electronics / smart wearable devices

● Digital cameras / medical devices / electrical appliances

● New energy vehicle / telephone application

● Smart water cup / car charging / air purifier

● Power bank / digital products / small household appliances

● Charging products / signal transmission products etc
