Plating: Gold plated (According to customer requirements)
Rated voltage (each contact): 5V
Rated current (each contact): 1A
Mechanical life: 10000 times
Operating temperature range: - 30 ~ 85 °
Categories: Pogo Pins, DIP Pogo Pin, 1A-5A

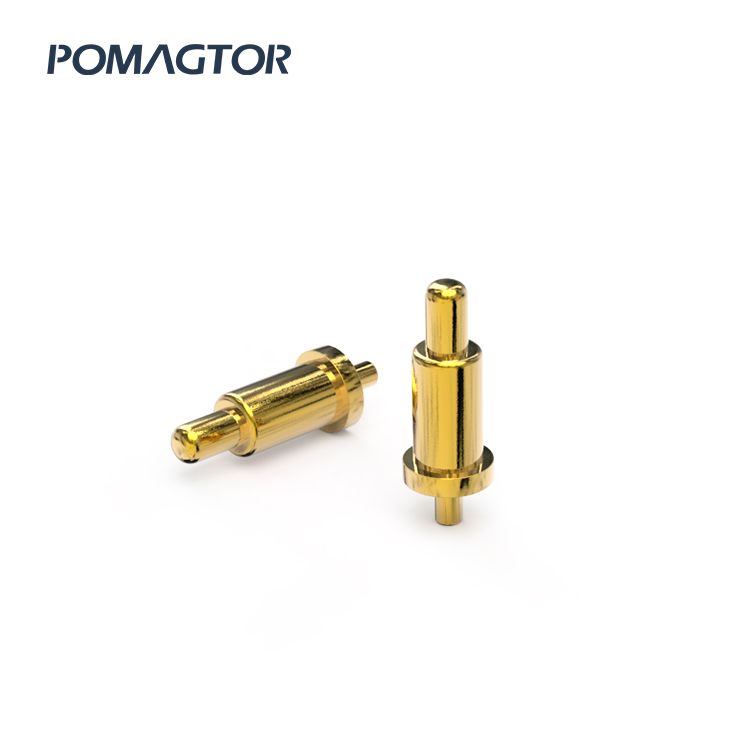

Pogo Pin is a spring-type probe formed by Plunger, Tube, and Spring. The three basic components become a Pogo Pin through high-precision equipment rivet pressure. Pogo Pin is also known as spring loaded electrical contacts, spring thimble, spring probe, Pogo Pin contacts.
Advantages of Pogo Pin DIP Type

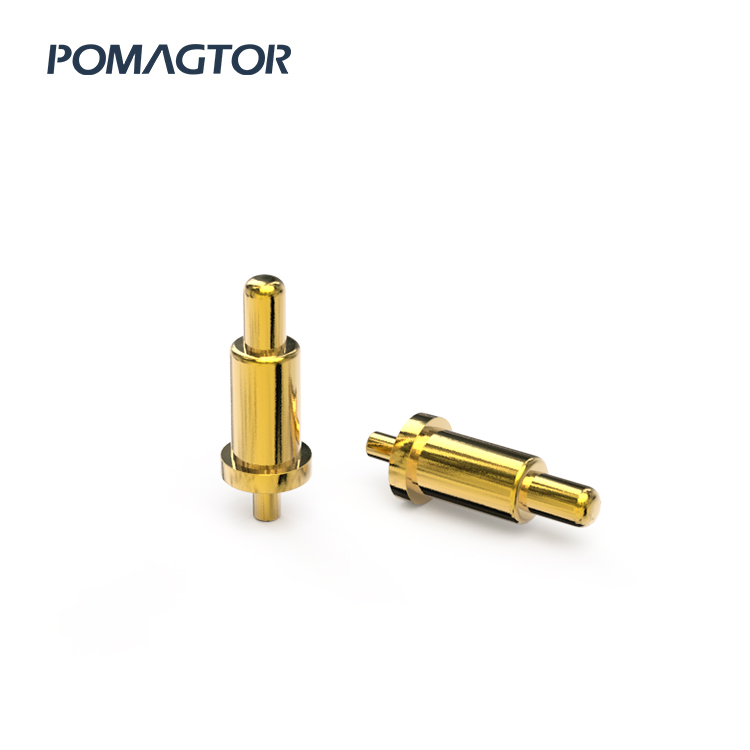

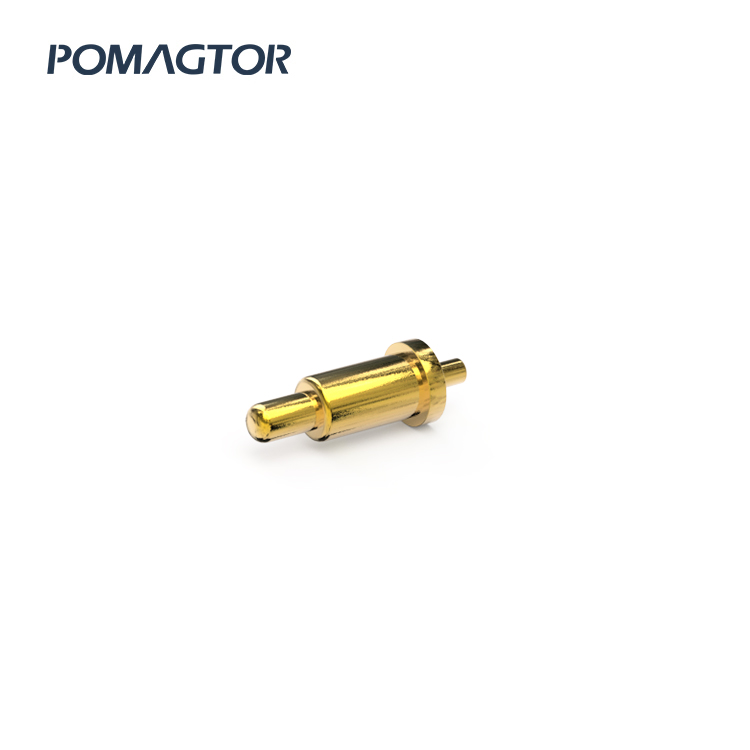

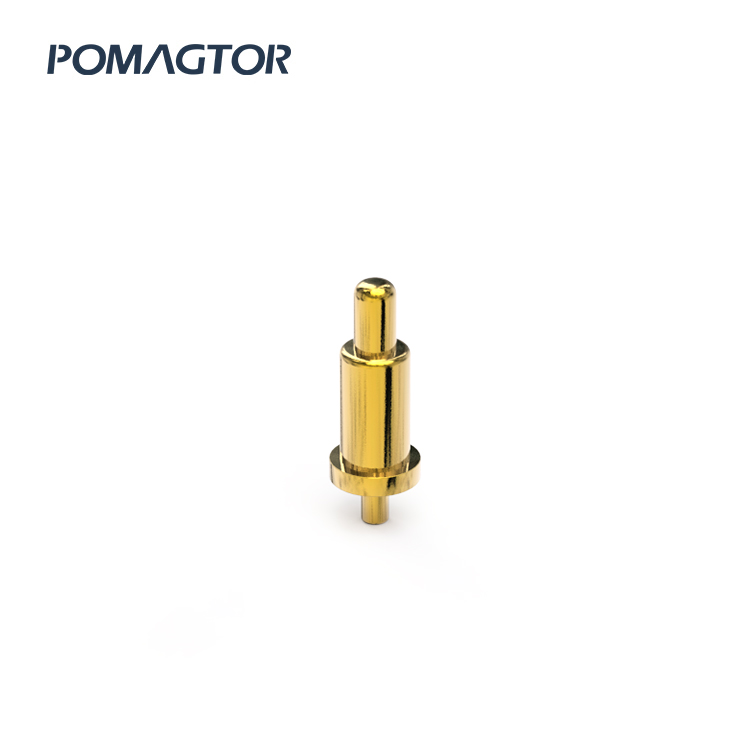

The DIP Pogo Pin is with a positioning pin on the bottom of the barrel. Hard to shift after mounted on PCB, it has Good performance on the positioning. The DIP Pogo Pins provide 10,000 mating cycles and range overall compressed stacking heights.
We provide a highly reliable, precision-made interconnect solution and can also assist with your custom design needs. Contact Pomagtor to order special DIP-type Pogo Pins. Large current and micro Pogo Pins types are within the custom range. They correspond to DIP automatic placement.
|1)Contact plating:brass Au3u"over 50-80u"Ni|
|2)Contact solder area plating:brass Au3u"over 50-80u"Ni|
|2.0 Rated Voltage(Per Contact):||5Volts|
|3.0 Rated Current(Per Contact):||1A|
|4.0 Contact Resistance:||30MΩ maximun before test and 60MΩ maximum after test at pogo pin working stroke|
|5.0 Recommended working Stroke&Force:||Stroke 0.5mm(Per Contact) 40gf±15gf|
|6.0 Mechanical life:||10000 Cycles|
|7.0 Working Temperature Range:||-30~85°|
Pomagtor's pogopin, magnetic attraction connector and magnetic attraction data line products can be applied to unlimited applications. The following are just some examples of how to use the product. Please feel free to contact pomagtor for more details
● Consumer electronics / smart wearable devices
● Digital cameras / medical devices / electrical appliances
● New energy vehicle / telephone application
● Smart water cup / car charging / air purifier
● Power bank / digital products / small household appliances
● Charging products / signal transmission products etc
Pogo Pin is applied to the charging connection of water cup: stable, low impedance, long life.
5G base stations
Application of Pogo Pin in 5G base station, RF, high speed, zero defect.
Pogo Pin application for charging connection: low resistance, high contact stability.
Pogo Pin is used for connecting antennas: low impedance, anti-interference.
LDS antenna: high space utilization, stable signal transmission, high consistency.
New energy charging pile
Pogo Pin is applied to new energy charging connection: stable, high current, long life.
Smart home/electronic door lock
Pogo Pin is used for charging connection: high current, low impedance, high contact stability.
