HOME  >  Connector  >  DIP>DIP Pogo pin connector 2Pin Stroke1.0mm(Per Contact): 35±20gf -30~85°C 1A 36V

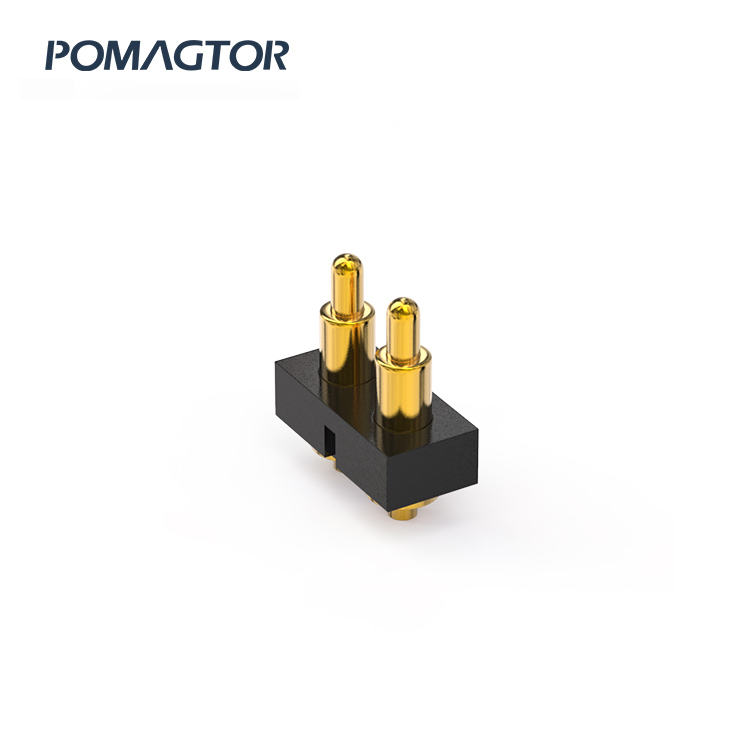

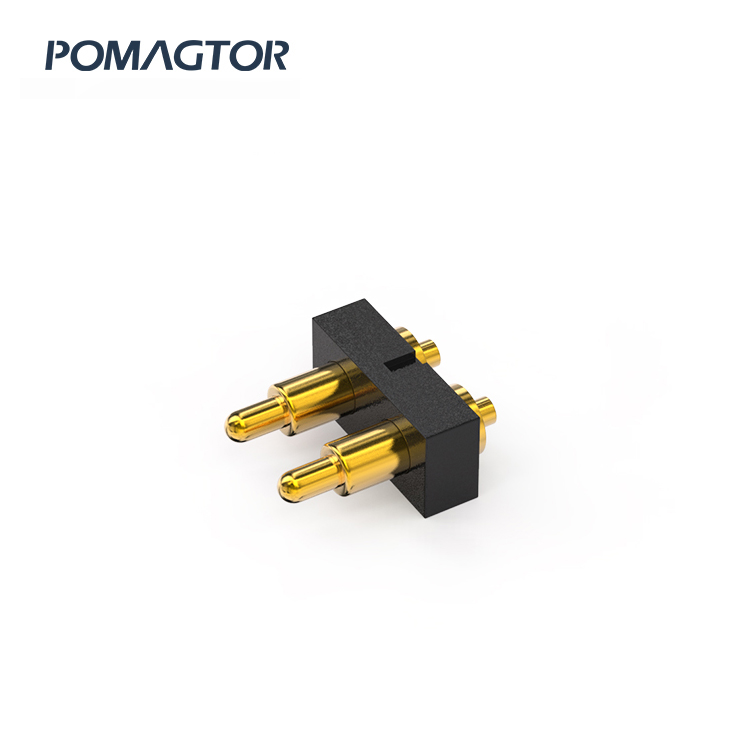

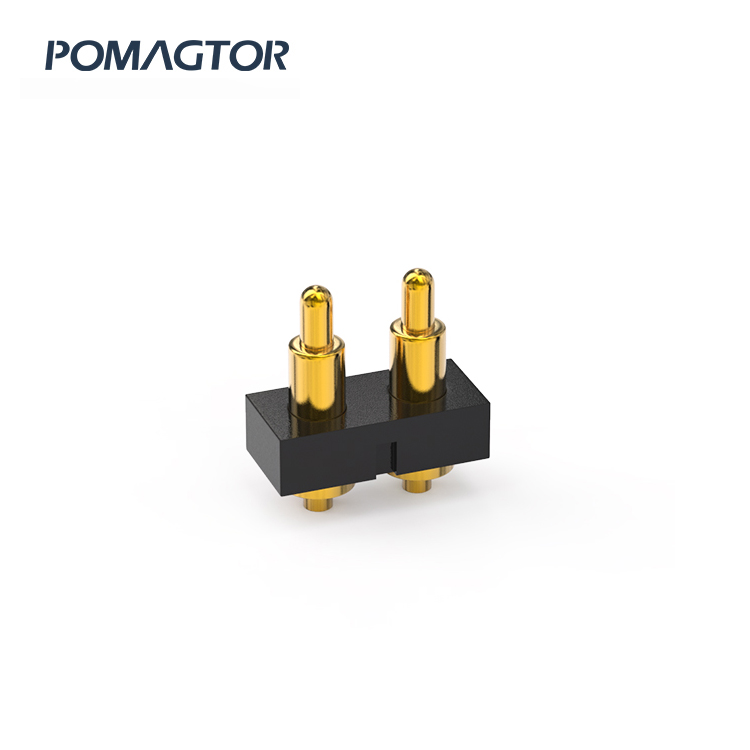

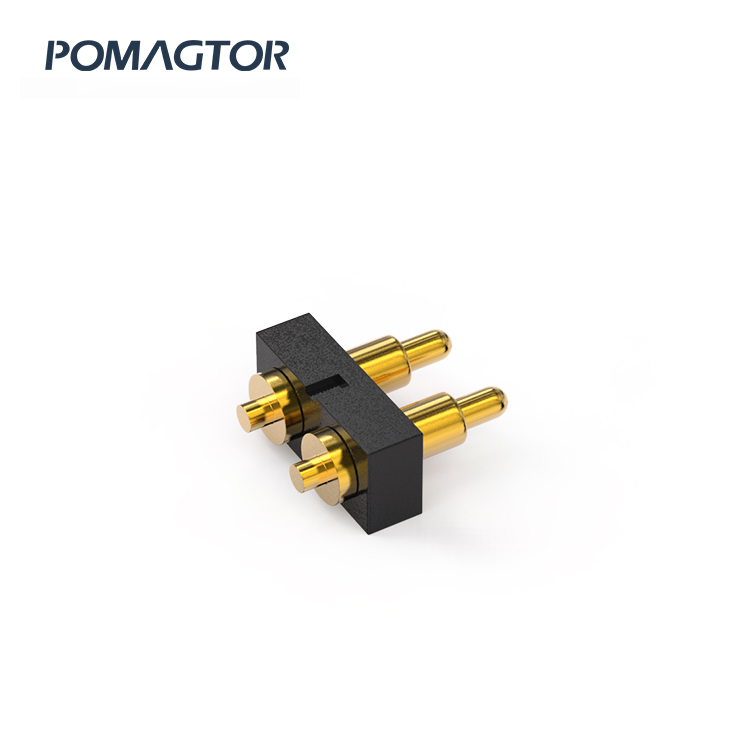

DIP Pogo pin connector 2Pin Stroke1.0mm(Per Contact): 35±20gf -30~85°C 1A 36V

Plating: Gold plated (According to customer requirements)

Rated voltage (each contact): 36V

Rated current (each contact): 1A

Mechanical life: 30000 times

Operating temperature range: - 30 ~ 85°

Categories: Pogo Pin Connector, DIP Connector, 2Pin Pogo Connector, 1A

Product Introduction

Product Parameters

Documents

Product Introduction


Product Introduction

A Pogo Pin connector is a spring-type probe formed by a rivet of four basic components, namely Plunger, Tube, Spring, and Housing, through high-precision equipment. For the connection of Pogo Pins, the spring-loaded pin is assembled in the Pogo Pin socket, which is then called the Pogo Pin connector.


A 2 Pin Pogo Connector is assembled by Pogo Pins and housing of 2 pins. The 2 Pin Pogo connector can improve the anti-corrosion function, mechanical properties, and electrical conductivity of the connector. It is mainly applied to charge computers, printers, GPS positioning, communication devices, medical equipment, aviation facilities, etc.

DIP Pogo Pins show good performance on the positioning. And the DIP Pogo connects to provide a highly reliable, precision-made interconnect solution for several demanding application requirements in the fast-moving world of electronic interconnects.


Customized Service

We provide a highly reliable, precision-made interconnect solution and can also assist with your custom design needs. Contact Pomagtor to order a custom 2Pin waterproof connector.

Product Parameters


1.0 PLATING
1)Contact plating:brass Au5u"over 50-80u"Ni
2)Contact solder area plating:brass Au7u"over 50-80u"Ni
3)Spring:SUS Au1-3u
4)Housing:PA46
2.0 Rated Voltage(Per Contact):36Volts
3.0 Rated Current(Per Contact):1A maximum
4.0 Insulation Resistance:100MEGAOHMS
5.0 Dielectric Withstanding Voltage:100V at 60Hz
6.0 Contact Resistance:30MΩ maximun before test and 60MΩ maximum after test at pogo pin working stroke
7.0 Recommended working Stroke&Force:Stroke 1.0mm(Per Contact) 35gf±20gf
8.0 Mechanical life:30000 Cycles
9.0 Working Temperature Range:-30~85°


Application

Pomagtor's pogopin, magnetic attraction connector and magnetic attraction data line products can be applied to unlimited applications. The following are just some examples of how to use the product. Please feel free to contact pomagtor for more details

● Consumer electronics / smart wearable devices

● Digital cameras / medical devices / electrical appliances

● New energy vehicle / telephone application

● Smart water cup / car charging / air purifier

● Power bank / digital products / small household appliances

● Charging products / signal transmission products etc
