Plating: Gold plated (According to customer requirements)
Rated voltage (each contact): 20V
Rated current (each contact): 3.5A
Mechanical life: 10000 times
Operating temperature range: - 30 ~ 85 °

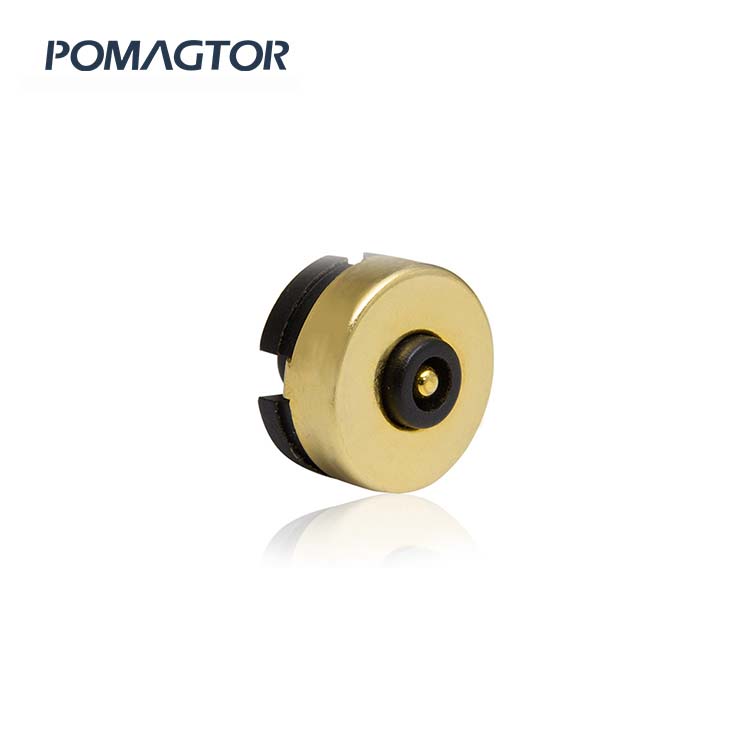

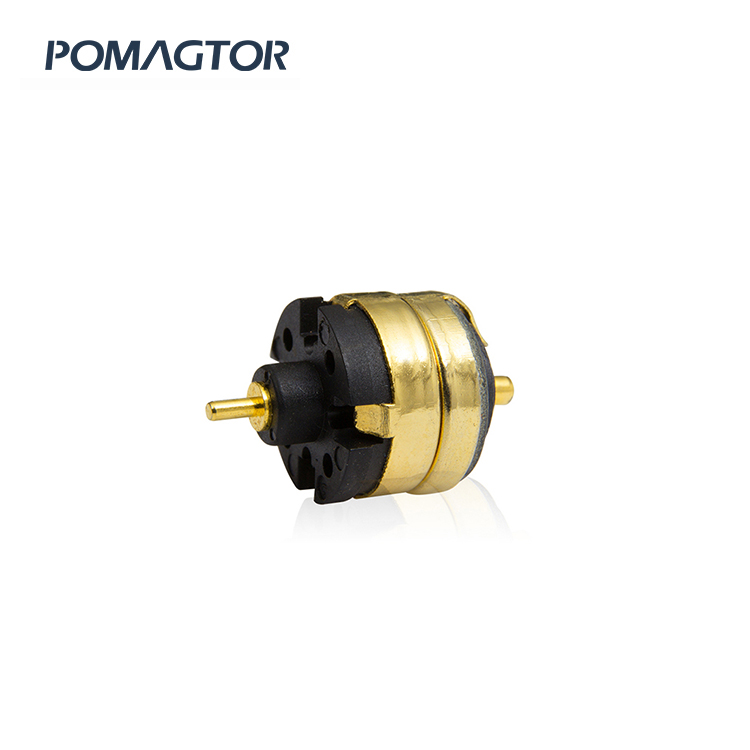

It not only achieves excellent high-frequency signal transmission and supports over 10A current charging, but also enables high-rate data transfer and fast charging capabilities. The magnetic connector 2 pin for E-textile designs ensure reliable performance in wearable devices.
Our magnetic connector 2 pins allow secure connections while maintaining a sleek product appearance, and the magnetic attraction function prevents accidental cable disconnections and damage to devices such as laptops, mobile phones, and other high-end electronics.
| NOTES | |
| 1.0 PLATING: | 1)Pover PIN Contact plating Au 10u"over 50-120u" Ni 2)Magnet: N50 Copper Sim the moment when the magnet pull (500-1000gf) |
| 2.0 Rated voltage(Per Contact): | 20Volts |
| 3.0 Rated Current(Per Contact): | 3.5A maximum |
| 4.0 Insulation Resistance: | 100Megaohms Minimum |
| 5.0 Dielectric withstanding Voltage: | 100Vrms at 60Hz |
| 6.0 Working Temperature Range: | -30~85° |
Pomagtor's Pogo Pin, magnetic attraction connector, and magnetic attraction data line products can be applied to unlimited applications. For projects requiring durable pogo pins for beauty instrument, Pomagtor also offers custom SMT spring-loaded pogo pins or SMT pogo pin ODM, and tailored SMT pogo pin solutions for stable electrical connectivity and precision.
The following are just some examples of how our products can be used-please feel free to contact Pomagtor for more details.
● Consumer electronics / smart wearable devices
● Digital cameras / medical devices / electrical appliances
● New energy vehicle / telephone application
● Smart water cup / car charging / air purifier
● Power bank / digital products / small household appliances
● Charging products / signal transmission products etc
