Plating: Gold plated (According to customer requirements)
Rated voltage (each contact): 5V
Rated current (each contact): 2A
Mechanical life: 10000 times
Operating temperature range: - 30 ~ 85 °

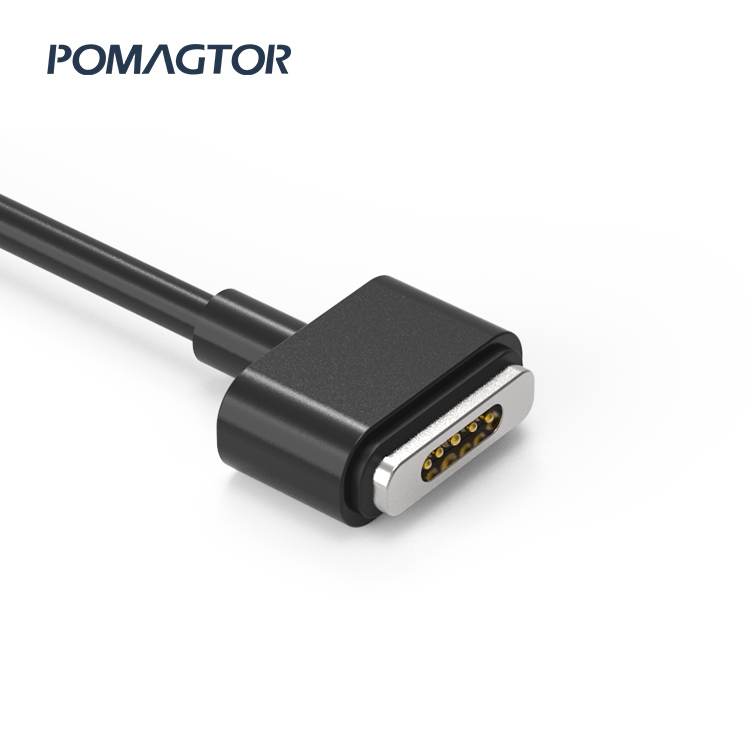

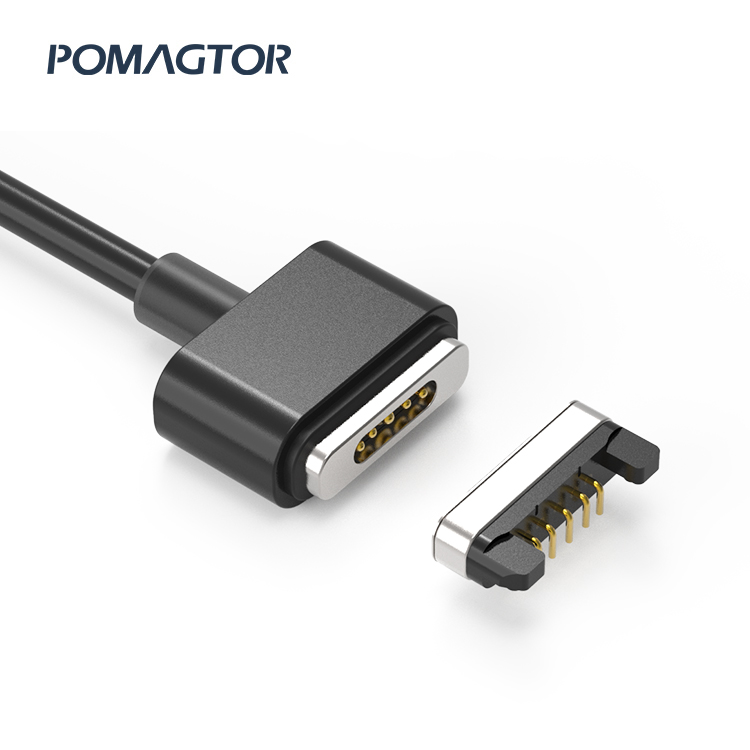

It can not only achieve good high frequency signal transmission, can provide more than 10A current charging, and at the same time can provide high rate data transmission, can achieve fast charging and other functions. The magnetic attraction function can achieve beautiful appearance design for the product, and solve the problems of pulling the charging cable from the host (laptop, mobile phone and other high-end devices) to dropping and damage.
1)Housing: PA9T Color:Black
3)Protctive film: Pc Color: Black
1)Pin: Au 10u" Min over 50~80u" Nickel
2)Magnet: Nickel 200u" Min
1)Rated current: 2A Max
2)Rated voltage: 5V
3)Insulation Resistance: 100mΩ min
4)Dielectric Withstand Voltage:100V at 60Hz
Pomagtor's pogopin, magnetic attraction connector and magnetic attraction data line products can be applied to unlimited applications. The following are just some examples of how to use the product. Please feel free to contact pomagtor for more details
● Consumer electronics / smart wearable devices
● Digital cameras / medical devices / electrical appliances
● New energy vehicle / telephone application
● Smart water cup / car charging / air purifier
● Power bank / digital products / small household appliances
● Charging products / signal transmission products etc
Pogo Pin is applied to the charging connection of water cup: stable, low impedance, long life.
5G base stations
Application of Pogo Pin in 5G base station, RF, high speed, zero defect.
Pogo Pin application for charging connection: low resistance, high contact stability.
Pogo Pin is used for connecting antennas: low impedance, anti-interference.
LDS antenna: high space utilization, stable signal transmission, high consistency.
New energy charging pile
Pogo Pin is applied to new energy charging connection: stable, high current, long life.
Smart home/electronic door lock
Pogo Pin is used for charging connection: high current, low impedance, high contact stability.
