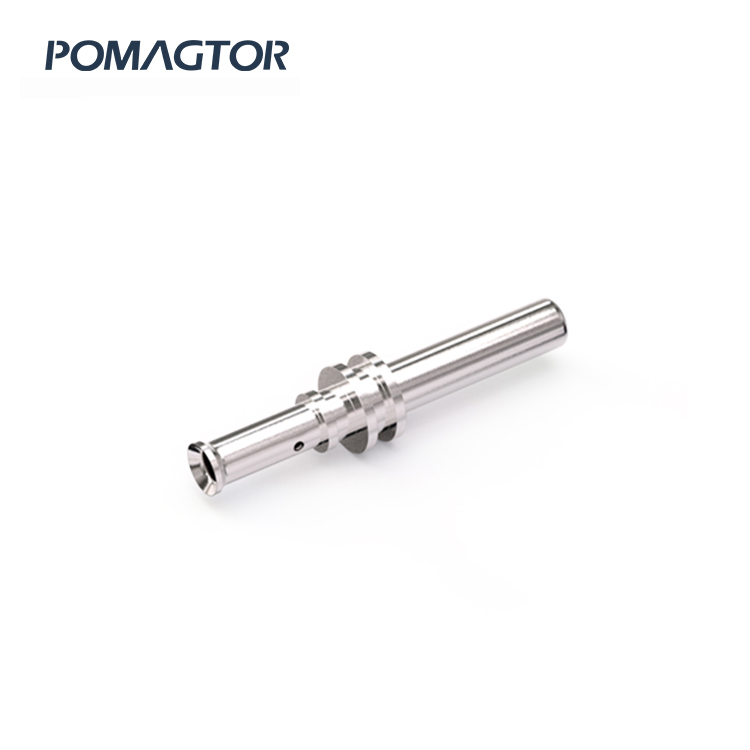

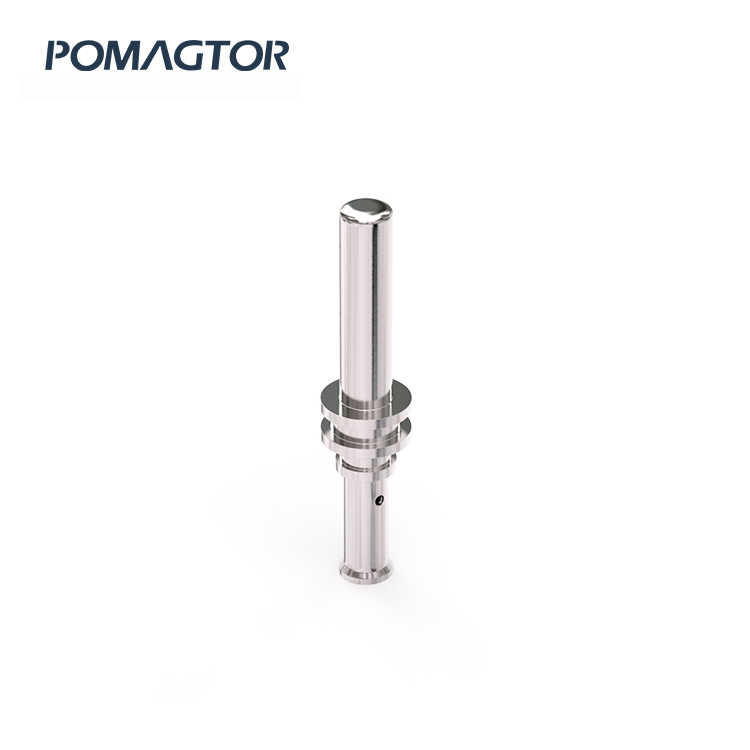

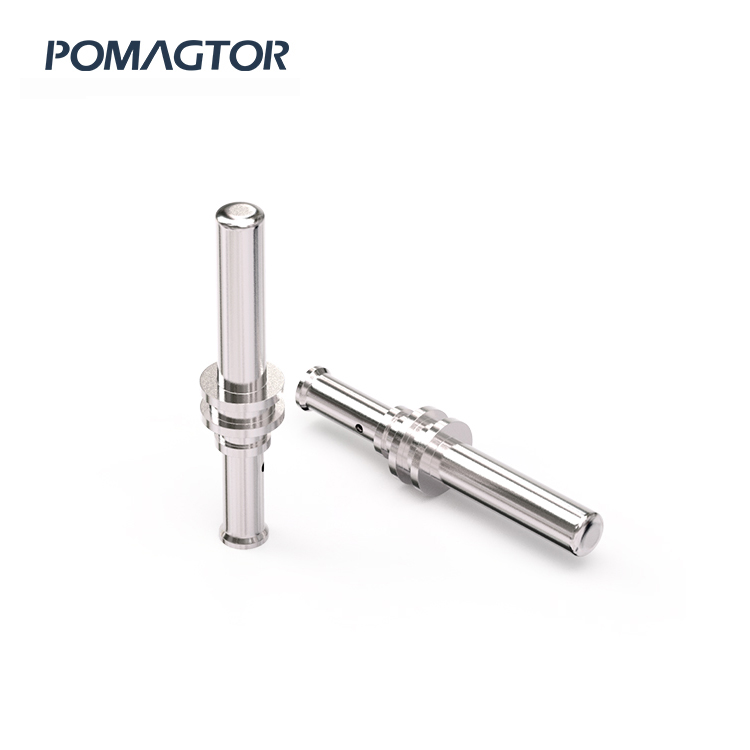

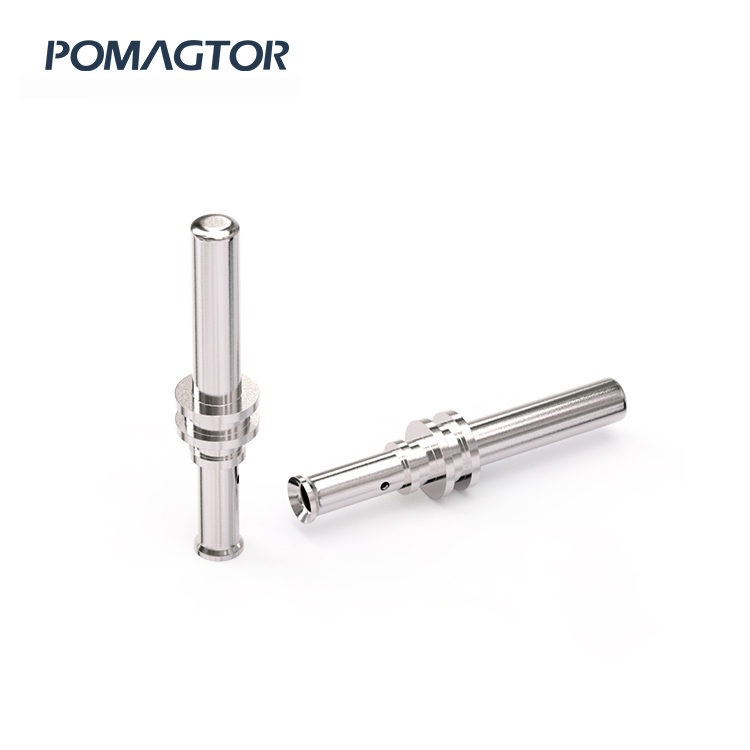

New energy Pogo Pin 10.3*43.68mm

Material: C35300-1 2 Hard ASTW B453 / B453M

Product Introduction

Product Parameters

Documents

Product Introduction


PogoPin is a Spring type probe formed by Plunger, Tube and Spring (Spring) three basic components through high precision equipment rivet pressure, also known as Spring needle, Spring thimble, Spring probe, Spring Loaded, PogoPin connector. The bottom of the Pogo Pin's Plunger is usually a bevel structure, which ensures that the Pogo Pin keeps the Plunger in contact with the inner wall of the Tube as it works, The current is passed primarily through the gold-plated Plunger and Tube to ensure the Pogo Pin is stable and has low impedance.

Product Parameters


The technical requirements
1. Material: H62-1 2 HARD PER ASTW B453/ B453M.

2. Finished product/coating:

First coating :N1 PER ASTM B689-97,2-7 micron thick. No later heat treatment must be used nickel sulfate second coating: Silver plating, type I ASTM B700 08,2-5 micron thick, Class B, Class N. The silver oxide process must be used.

3. Finish: SP1-B2, RAL.6 or better.
4. Clean: free of oil and other pollutants
5. The product shall be grinded without burr, metal shavings or other defects, and the grinding Angle shall be less than 0.1 mm;
6. The raw materials, processing technology and process materials of the products shall not be changed to ensure product consistency;
7. All materials and coatings must comply with all applicable international environments Relevant regulations, including but not limited to EU directives WVTA, ELV, RRR, RoHS, The WEEE, REACH and BATTERY directives 2006/66 /EC are described in detail in GADSL List its latest version when used (HTTP :/ /WWW.gads 1. Or g refer to DOC # BMS-00001 47 for details.
8. All materials and coatings must comply with EU Directive 2000/53 /EC (ELV Directive)
9. Components in compliance with EU Directive 2003/138/EC(Material Coding Directive)


Application

Pomagtor's pogopin, magnetic attraction connector and magnetic attraction data line products can be applied to unlimited applications. The following are just some examples of how to use the product. Please feel free to contact pomagtor for more details

● Consumer electronics / smart wearable devices

● Digital cameras / medical devices / electrical appliances

● New energy vehicle / telephone application

● Smart water cup / car charging / air purifier

● Power bank / digital products / small household appliances

● Charging products / signal transmission products etc
