Plating: Gold plated (According to customer requirements)
Rated voltage (each contact): 5V
Rated current (each contact): 3A
Mechanical life: 10000 times
Operating temperature range: - 30~85 °

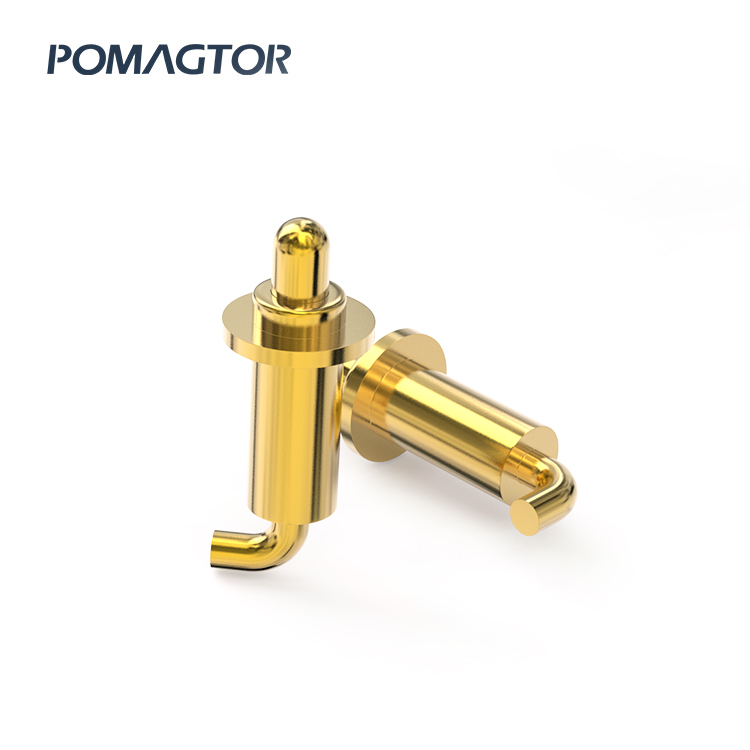

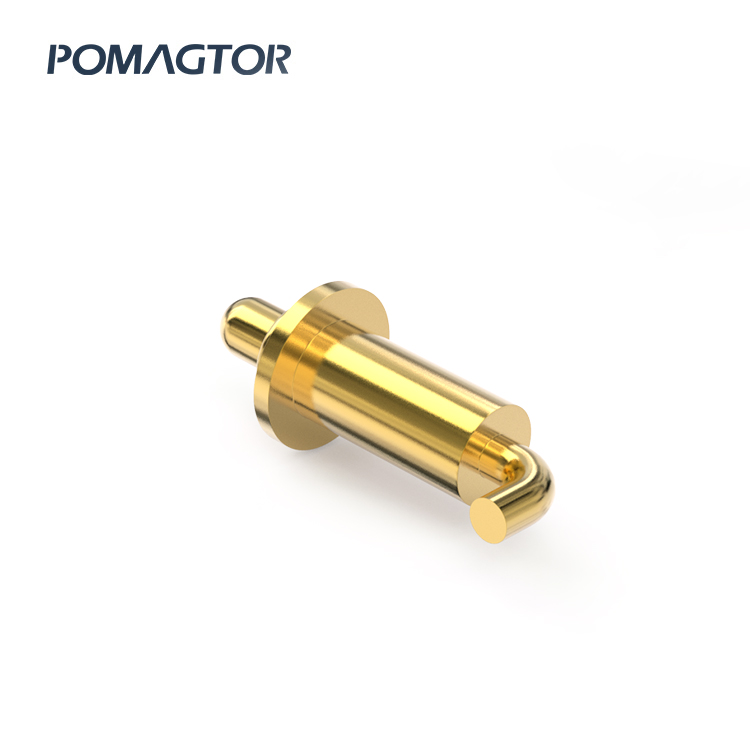

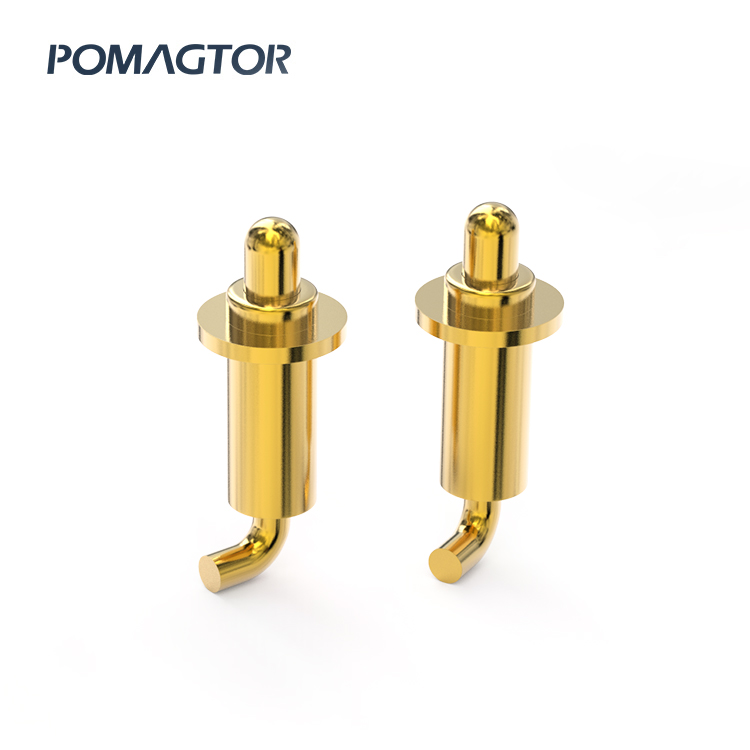

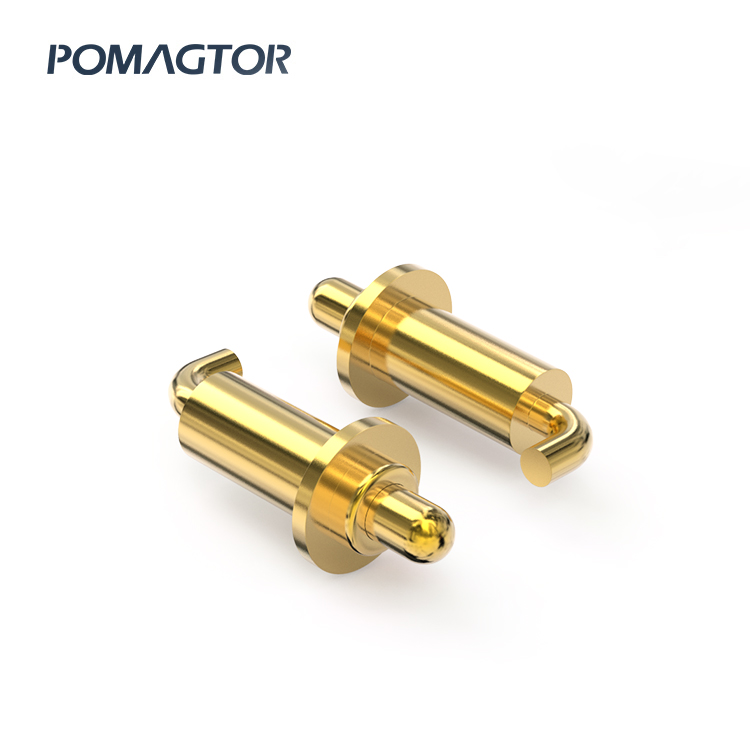

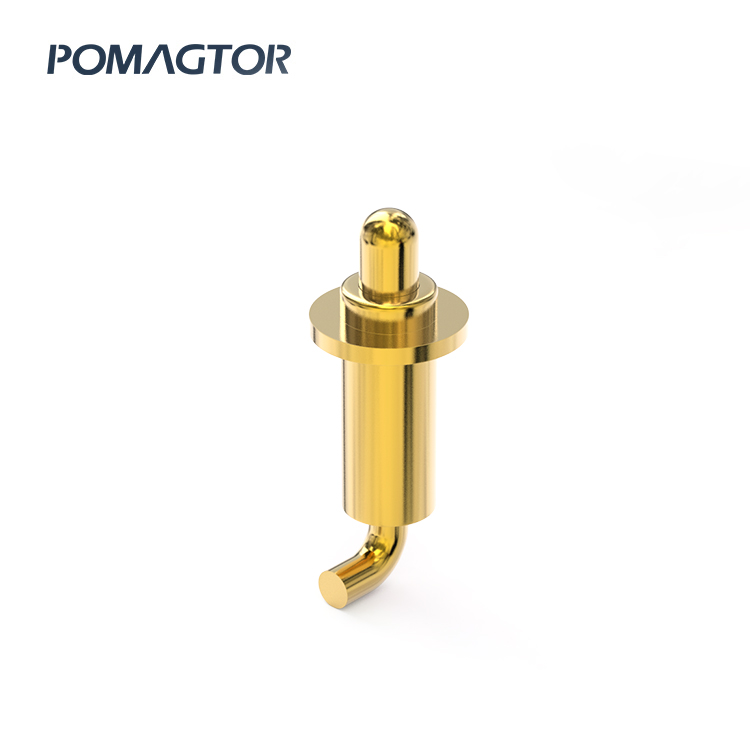

PogoPin is a Spring type probe formed by Plunger, Tube and Spring (Spring) three basic components through high precision equipment rivet pressure, also known as Spring needle, Spring thimble, Spring probe, Spring Loaded, PogoPin connector. The bottom of the Pogo Pin's Plunger is usually a bevel structure, which ensures that the Pogo Pin keeps the Plunger in contact with the inner wall of the Tube as it works, The current is passed primarily through the gold-plated Plunger and Tube to ensure the Pogo Pin is stable and has low impedance.
1)Contact plating: brass Au5u"over 50-80u" Ni
2)Contact solder area plating: brass Au5u" over 50-80u" Ni
|2.0 Rated voltage(Per Contact):||5 Volts|
|3.0 Rated Current(Per Contact):||3A maximum|
|4.0 Insulation Resistance:||100 Megaohms Minimum|
|5.0 Dielectric Withstanding Voltage:||100Vrms at 60Hz|
|6.0 Contact Resistance:||30mΩ maximum before fest and 60mΩ maximumafter test at pogo pin working stroke|
|7.0 Recommended Working Stroke&Force:||Stroke 1.0mm(Per Contact): 60±15gf|
|8.0 Mechanical life:||10000 Cycles Min|
|9.0 Working Temperaure Range:||-30~85°|
Pomagtor's pogopin, magnetic attraction connector and magnetic attraction data line products can be applied to unlimited applications. The following are just some examples of how to use the product. Please feel free to contact pomagtor for more details
● Consumer electronics / smart wearable devices
● Digital cameras / medical devices / electrical appliances
● New energy vehicle / telephone application
● Smart water cup / car charging / air purifier
● Power bank / digital products / small household appliances
● Charging products / signal transmission products etc
Pogo Pin is applied to the charging connection of water cup: stable, low impedance, long life.
5G base stations
Application of Pogo Pin in 5G base station, RF, high speed, zero defect.
Pogo Pin application for charging connection: low resistance, high contact stability.
Pogo Pin is used for connecting antennas: low impedance, anti-interference.
LDS antenna: high space utilization, stable signal transmission, high consistency.
New energy charging pile
Pogo Pin is applied to new energy charging connection: stable, high current, long life.
Smart home/electronic door lock
Pogo Pin is used for charging connection: high current, low impedance, high contact stability.
