Plating: Gold plated (According to customer requirements)
Rated voltage (each contact): 220V
Rated current (each contact): 60A
Mechanical life: 20000 times
Operating temperature range: - 30 ~ 85 °
Categories: Pogo Pins, High Current Pogo Pin, 60A

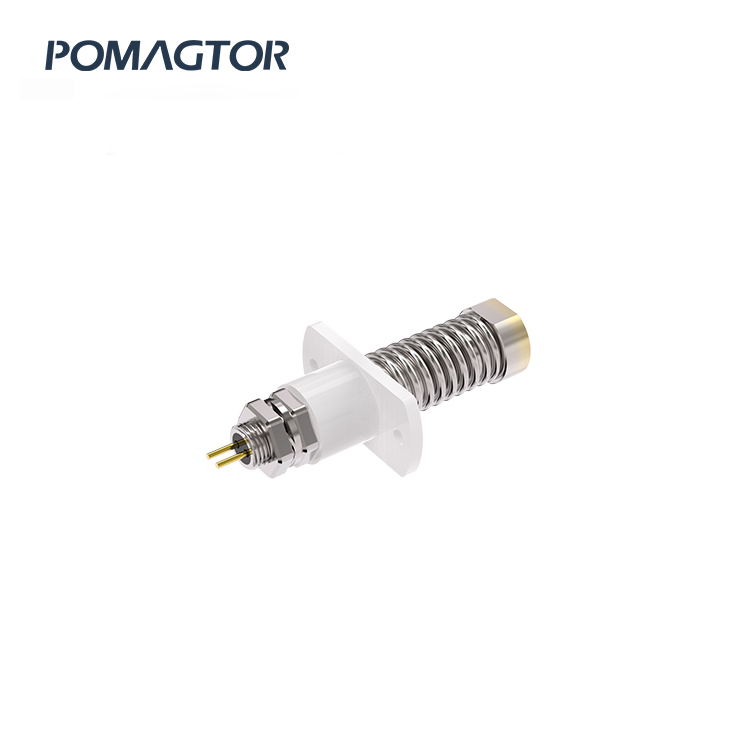

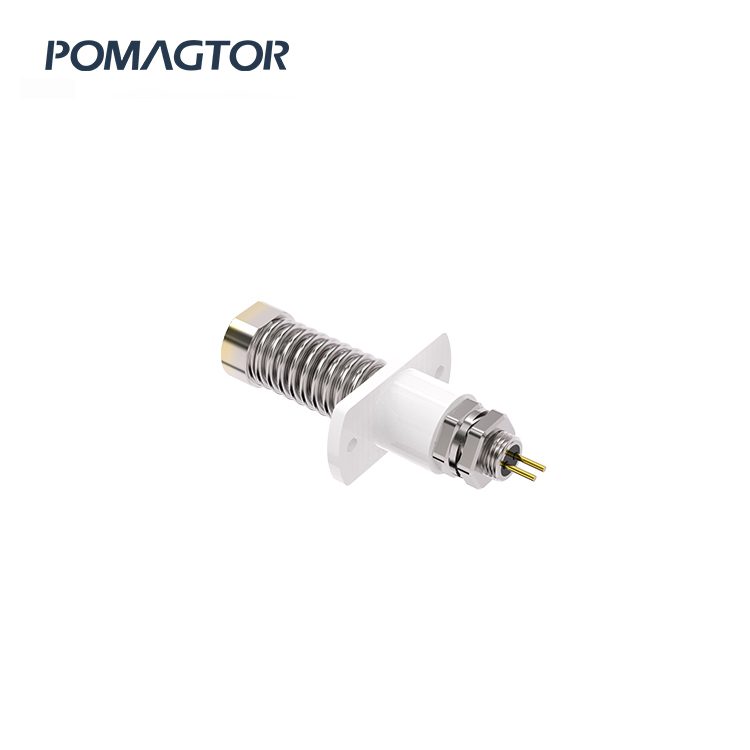

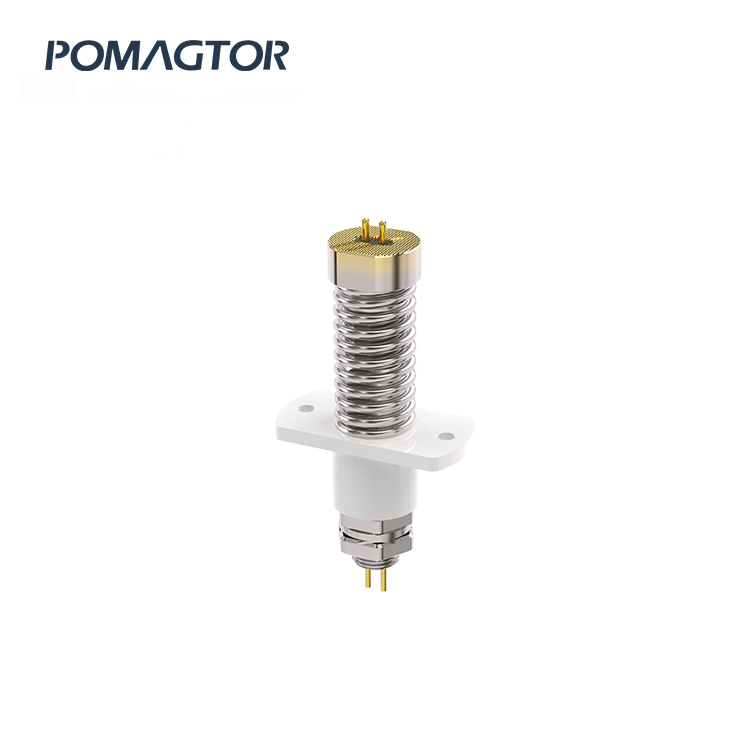

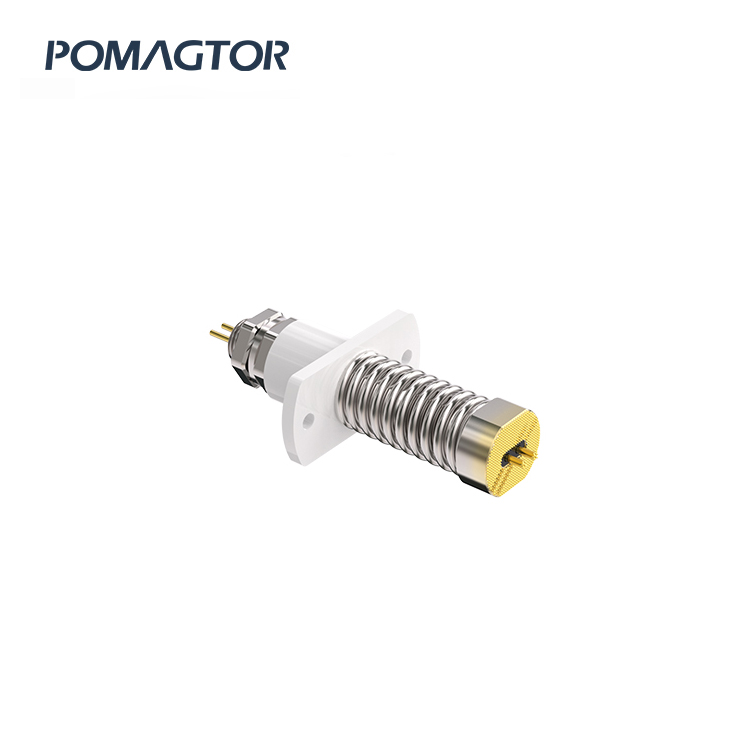

Pogo Pin is a spring-type probe formed by Plunger, Tube, and Spring. The three basic components become a Pogo Pin through high-precision equipment rivet pressure. Pogo Pin is also known as spring loaded pins, spring thimble, spring probe.
Pomagtor's new high-current designs take Pogo Pins to a new level. The advantages of high-current Pogo Pin are as the following.
Contact Resistance Stability
The high-current Pogo Pin surface plating and high-current test probes can improve flexibility, corrosion resistance, wear resistance, durability, and mechanical properties.
High current Pogo Pin needs repeated insertion and removal during the work, and it's a strict working frequency. Therefore， Pogo Pin surface gold plating is thicker than ordinary. It can effectively prevent Pogo Pin from being corroded and oxidized in the working environment， making the high-current Pogo Pin life longer.
We provide a highly reliable, precision-made interconnect solution and can also assist with your custom design needs. Contact Pomagtor to order a custom high-current Pogo Pin and high-current Pogo Pin connector.
|1.0 Rated Voltage(Per Contact):||220Volts|
|2.0 Rated Current(Per Contact):||60A|
|3.0 Contact Resistance:|
|4.0 Recommended working Stroke&Force:|
1)Stroke 6mm: 300±50g
2)Stroke 6mm: 10kgf±1kgf
|5.0 Mechanical life:||20000 Cycles|
|6.0 Salt spray test 48 hours|
|7.0 Working Temperature Range:||-30~85°|
Pomagtor's pogopin, magnetic attraction connector and magnetic attraction data line products can be applied to unlimited applications. The following are just some examples of how to use the product. Please feel free to contact pomagtor for more details
● Consumer electronics / smart wearable devices
● Digital cameras / medical devices / electrical appliances
● New energy vehicle / telephone application
● Smart water cup / car charging / air purifier
● Power bank / digital products / small household appliances
● Charging products / signal transmission products etc
Pogo Pin is applied to the charging connection of water cup: stable, low impedance, long life.
5G base stations
Application of Pogo Pin in 5G base station, RF, high speed, zero defect.
Pogo Pin application for charging connection: low resistance, high contact stability.
Pogo Pin is used for connecting antennas: low impedance, anti-interference.
LDS antenna: high space utilization, stable signal transmission, high consistency.
New energy charging pile
Pogo Pin is applied to new energy charging connection: stable, high current, long life.
Smart home/electronic door lock
Pogo Pin is used for charging connection: high current, low impedance, high contact stability.
