Plating: Gold plated (According to customer requirements)
Rated voltage (each contact): 12V
Rated current (each contact): 1A~1.65A
Mechanical life: 10000 times
Operating temperature range: - 40 ~ 150°
Categories: Pogo Pins, SMT/SMD Pogo Pin, 1A-1.65A

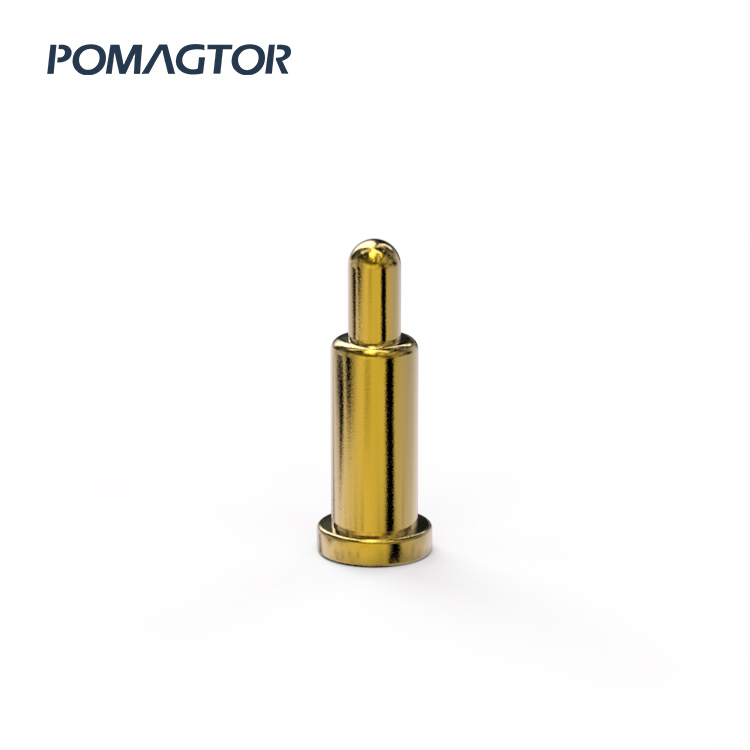

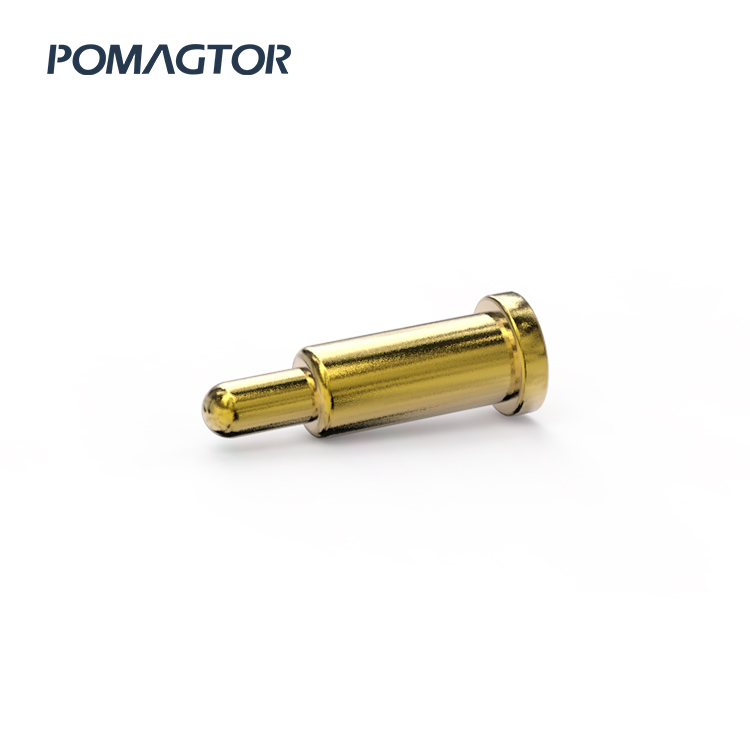

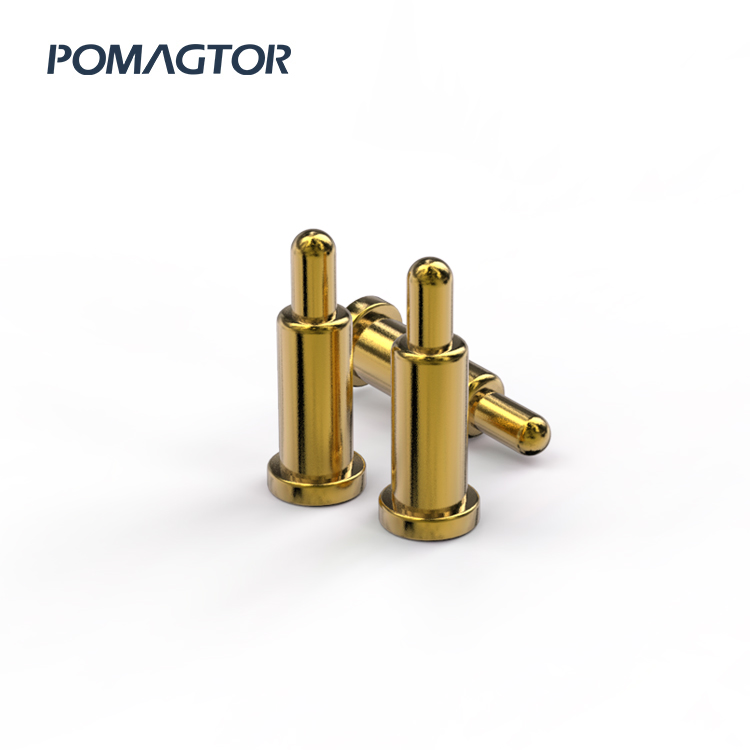

Pogo Pin is a spring-type probe formed by Plunger, Tube, and Spring. The three basic components become a Pogo Pin through high-precision equipment rivet pressure. Pogo Pin is also known as spring needle, spring thimble, spring probe, spring-loaded, and spring Pogo Pin.

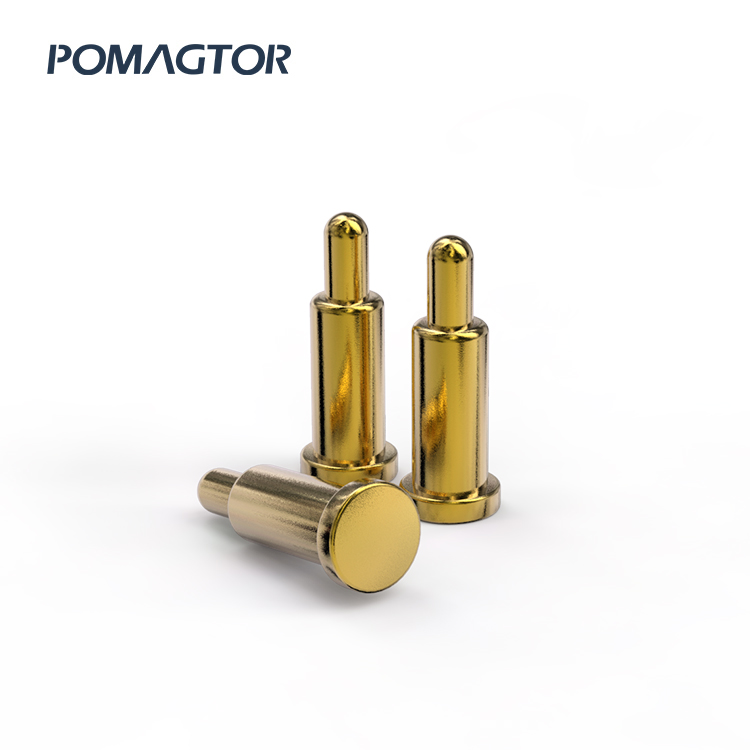

SMT Pogo Pins are also known as the surface mount technology of Pogo PCB. It is a Pogo PCB circuit assembly technology that combines SMT Pogo Pins by reflow soldering and other methods. SMT Pogo Pins with high stability have a flat design at the bottom of their needle tube, which is easy to weld PCB boards.
Advantages of Pogo Pin SMT Type
The advantages of SMT Pogo Pins include high assembly density, small size of electronic products, lightweight, high reliability, strong anti-vibration ability, and low solder joint defect rate. Besides, the communication technology of the spring Pogo Pin has a high frequency which can reduce electromagnetic and RF interference.
We provide a highly-reliable, precision made interconnect solution, and can also assist with your custom design needs. Contact Pomagtor to order special SMT Pogo Pins.
" minimum Au over 80~100u" Ni
1)Rated Current&Voltage:DC 12V; AC 1A~1.65A
2)Contact Resistance:25MΩ maximum
|4.0 RoHS COMPLIED PROUCT|
|5.0 Elasticity:||Stroke 0mm:10gf Stroke 0.25mm:50gf Stroke 1.50mm(or fully compressed):100-150gf|
|6.0 Mechanical life:||10000 Cycles|
Pomagtor's pogopin, magnetic attraction connector and magnetic attraction data line products can be applied to unlimited applications. The following are just some examples of how to use the product. Please feel free to contact pomagtor for more details
● Consumer electronics / smart wearable devices
● Digital cameras / medical devices / electrical appliances
● New energy vehicle / telephone application
● Smart water cup / car charging / air purifier
● Power bank / digital products / small household appliances
● Charging products / signal transmission products etc
Pogo Pin is applied to the charging connection of water cup: stable, low impedance, long life.
5G base stations
Application of Pogo Pin in 5G base station, RF, high speed, zero defect.
Pogo Pin application for charging connection: low resistance, high contact stability.
Pogo Pin is used for connecting antennas: low impedance, anti-interference.
LDS antenna: high space utilization, stable signal transmission, high consistency.
New energy charging pile
Pogo Pin is applied to new energy charging connection: stable, high current, long life.
Smart home/electronic door lock
Pogo Pin is used for charging connection: high current, low impedance, high contact stability.
